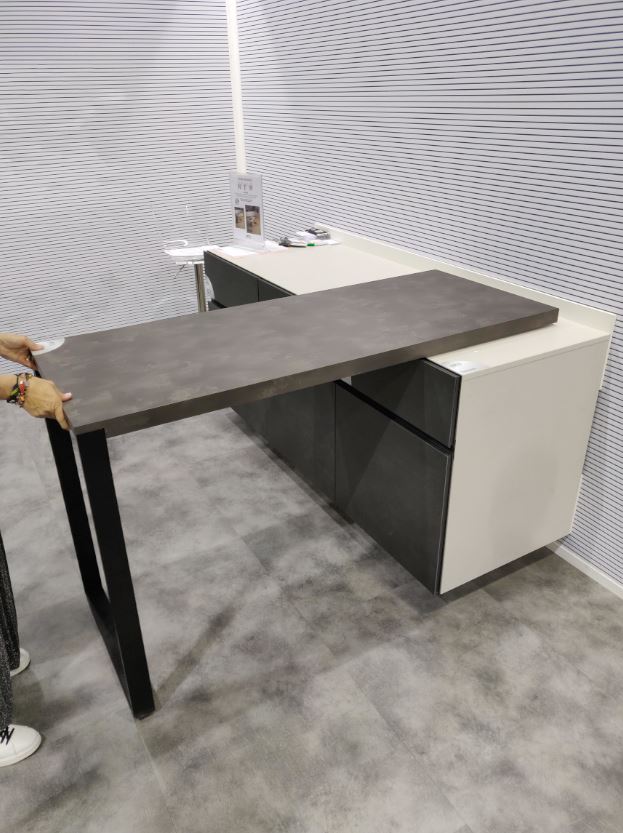

SESTANTE Slide Out & Revolving Countertop | Frame Only | Adjustable Height

The SESTANTE is a sophisticated piece of Italian furniture using a patented design which offers both style and elegance to any kitchen décor! With its stunning appearance and innovative slide and revolve mechanism, this sliding countertop extension Frame is perfect for use as a kitchen table, breakfast bar or extendable dining table / buffet table for when guests arrive. What’s more, is that this unit was designed and developed with space saving in mind, meaning this unit can be neatly stowed away when not in use, or easily extended when required.

Unlike our other SESTANTE frame that we list with a fixed leg height of 930mm (view HERE), this model has an adjustable leg which offers a minimum height of 800mm up to a maximum height of 960mm. Please see full dimensions under the 'Technical Data' tab.

Technical information:

  • Load Capacity: 80kg Evenly distributed
  • Pivot/Sliding Mechanism: Ball-bearing slide system
  • Rotation: 270° degree if the application is in an island; 190° if the application is fit along a wall.
  • Slides: Anodised aluminium / Leg: Black RAL 9005
  • Adjustable leg height: Min. 800mm – Max. 960mm
  • *Revolving frame only; wooden parts not included.

This patented kitchen countertop frame is made from anodised aluminium. The anodized aluminium not only offers a stylish, modern look but it is also durable and resistant to corrosion.

All our sliding table top mechanisms have a locking system to ensure that the table will remain in place while fully extended.

Please refer to the technical data tab for technical information and fitting instructions.

** We recommend you enlist the services of a carpenter or professional kitchen fitter to install this unit, and please ensure they’re aware of the installation overview video that can be found on every product page – the relevant set of installation instructions will always be included in the box with the product but if needed, a copy can normally be found within the Technical Data tab, along with any other useful info. **

Can’t see what you’re looking for? We offer the SESTANTE Sliding Countertop Extension Frame in an anodised aluminium finish as standard. However, if you require an alternative, get in touch with our sales department today as we may be able to offer custom finishes on request, subject to MOQ’s and extended lead times.


 600mm Wide 1 In Stock More Info (104306017800)

 700mm Wide Dispatches in approx 2-4 weeks* More Info (109AL7017800)

 800mm Wide Dispatches in approx 2-4 weeks* More Info (109AL8017800)

 900mm Wide Dispatches in approx 2-4 weeks* More Info (109AL9017800)

£ each £ total

Buy more and save.
** For larger quantities please add to basket and then adjust in the basket

1 2 3+
£762.53
Each		 £717.67
Each		 £672.82
Each

ACCESS TRADE PRICES REQUEST A QUOTE

Prices exclude VAT. Display prices including VAT.

Customer reviews for this product. Submit your own review...

Submitted by Tom Jay (2/02/2024)
Great product enabling creative design and solutions for our clients

Quality
Accurate Description
Performance/Suitability
Value for money
Overall Score  5.0 / 5

Do you have a question? Submit FAQ

Our countertop close to 2000mm long. Slide Out & Revolving Countertop is 1500mm long. Questions:1. Is any idea of making surface that are not covered by table and surface of the table on the same level? 2. When table turned 90 degrees to the countertop, what is the distance from the countertop edge to the table edge? Thank you.

Hello. Q1: 1500 is not indicated as a minimum size; the dimensions are based on standard sizes so that you can establish the basis of your project. If you want to make measures other than those indicated in the catalog, please consult with your kitchen designer. Q2: This will of course depend on the maximum length of the SESTANTE top, but consider 30cm more or less. I hope this assists. Kind regards, BOX15

Can this sliding breakfast bar (or any other movable breakfast bars in your range) be mounted at an elevated height to clear a hob mounted on the island?

Hello. No, not as standard. You would need to adapt the island to accommodate for the sliding mechanism to be fitted so that it is raised, higher than the hob. Please see the video and the ‘Fitting Instructions’ under the ‘Technical Data’ tab to see how the mechanism is mounted and operates. Kind regards, BOX15

Hi, I am looking to purchase a 700mm frame from you to mount onto a worktop that has a wall behind it. What is the minimum depth I need for my worktop in order for this mechanism to rotate properly (without hitting the wall behind it).

Hello. Please see the fitting instructions under the ‘Technical Data’ tab. If you pull it towards you before turning it, the table does not touch the wall. Please also see both videos under the video tab to see how the system works. I hope this assists. Kind regards, BOX15

How much space (marked E in the diagram) would I needed between the counter this countertop is mounted on and an adjacent wall in order for this product to rotate properly?

Hello. Please see the 'Fitting Instructions' under the ‘Technical Data’ tab. If you pull it towards you before rotating it, the table does not touch the wall. Please also see both videos under the video tab, showing how the unit is fitted and how the system operates. I hope this assists. Kind regards, BOX15
