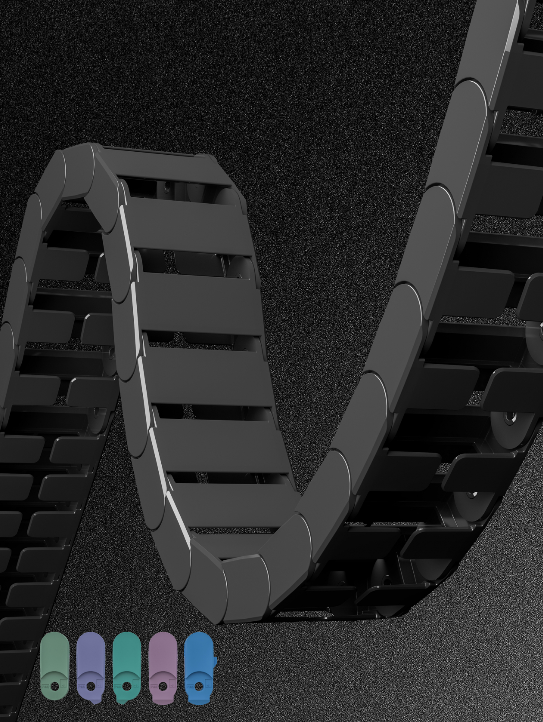

KUBA-3 'Outwards' Magnetic Snake, 1270mm High

KUBA 3 Cable Spines are perfect for office desks & tables, as well as Sit Stand Desks.  Otherwise known as Cable Risers, Cable Snakes, Wire Management Umbilicals and Slinky's - the streamline design and attachments including magnetic adapters, allow you to streamline cable management by having the system run vertically or horizonatally, whilst staying connected to desk frame metalwork.

The wide variety of new Kuba 3 cable guides provide you with a range of different combination options. The two exterior joints hold the cable guide securely in the defined direction of movement.  This is a suggested configuration, made up of a mix of 3 different styles of cable guides (or cells), which are detailed below but this is a typical set up for a height adjustable or sit stand desk.

The cable guide can be fully customized to meet your personal needs and wishes. The area with the openings for the cables defines the front and exterior of the KUBA 3; data cables and electrical cables are fed through here into the cable guide.

This system can be used to create a defined sequence of movement. To that end, we offer five different cable guide elements that each have different functions. Please note that the function described is transferred to the cable guide element below it in each case.

What makes our KUBA 3 special is the fact that the cable guide elements can only be moved in the pre-defined direction. The two exterior pivot points in combination with the different types of cable guide elements mean that the cable guide can only move in the pre-defined direction or remain completely rigid. We would be happy to create cable guides of customized lengths for you upon request. Our KUBA 3 is available in three standard colors: black (≈ RAL 9005) , white (≈ RAL 9010/9016) and light gray (≈ RAL 7035) . Other colors already set include signal white (≈ RAL 9003) and silver grey (≈ RAL 9006). We also offer special configurations upon request; please feel free to contact us! We are happy to help.

This set includes:

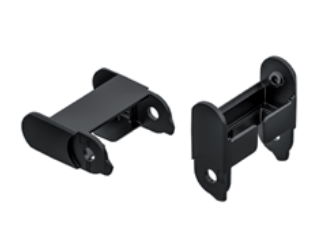

• 1 x Table Connector with 2 screws
• 24 cable guide elements KUBA 3 inside
• 4 cable guide elements KUBA 3 outside
• 13 cable guide elements fix with spacer

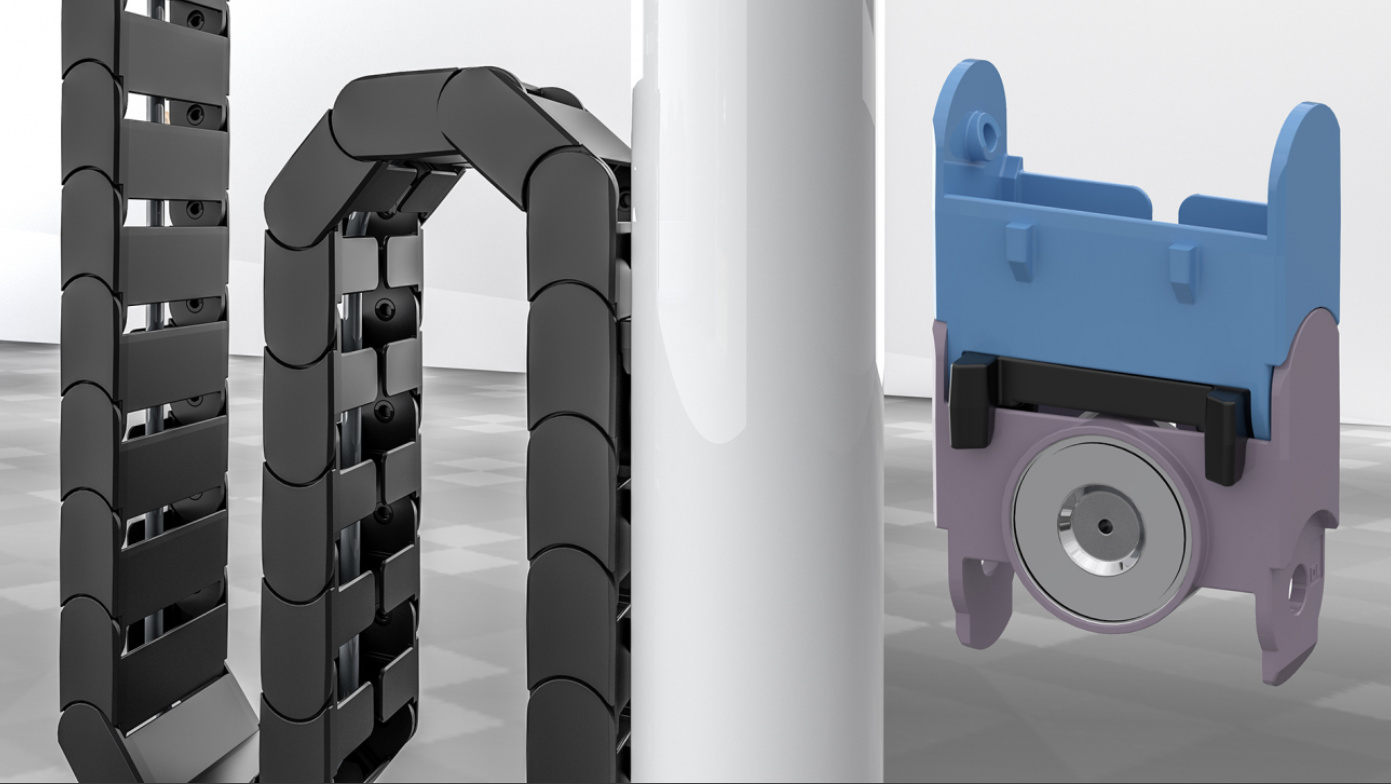

• 1 cable guide element magnet holder within the chain
• 1 magnet holder end of chain
• 1 adapter round tubes Ø 70 mm

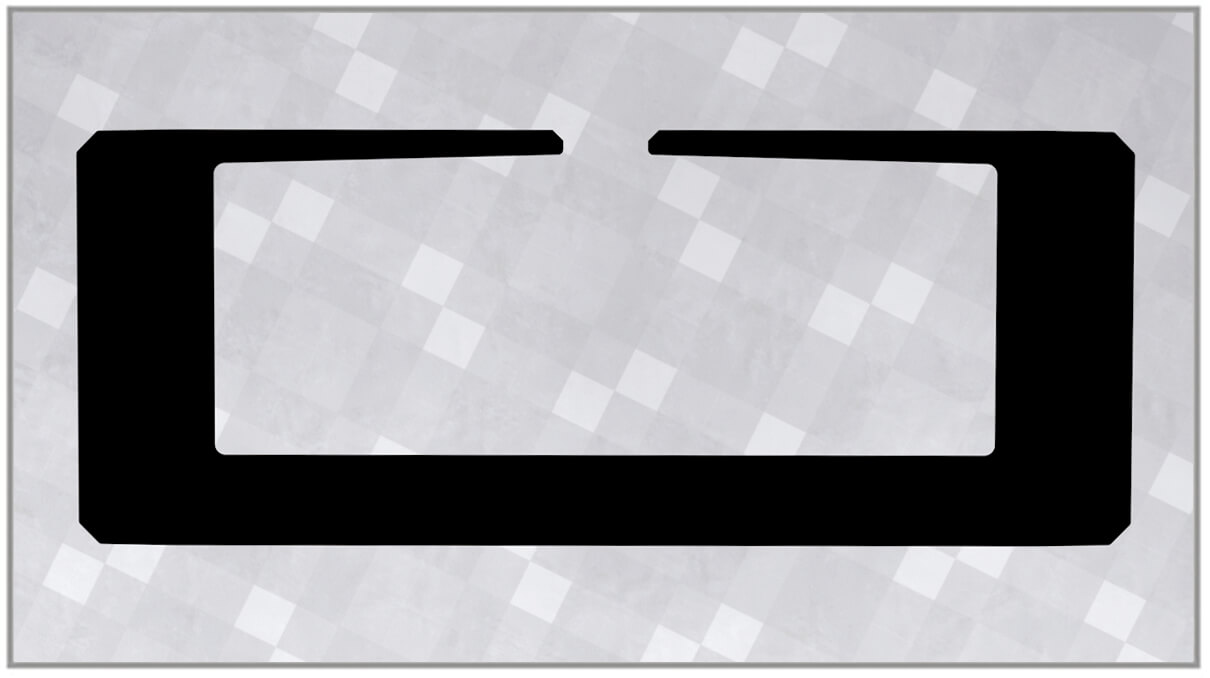

The elegant design of this cable management system is comprised of a twin-cell compartment which enables efficient management and separation of power and data cables.

Another unique aspect of the KUBA cable management range is that the snakes are modular, allowing you to add/remove cells as required to create any length. The modular design of the KUBA cable management range also features a wide variety of cable management accessories, all designed to complement each other.

Designed primarily for sit stand desking, the range focuses on an uninterrupted supply of power and data through the office, thanks to floor cable trunking, cable snakes and a range of accessories.

KUBA accessories include:

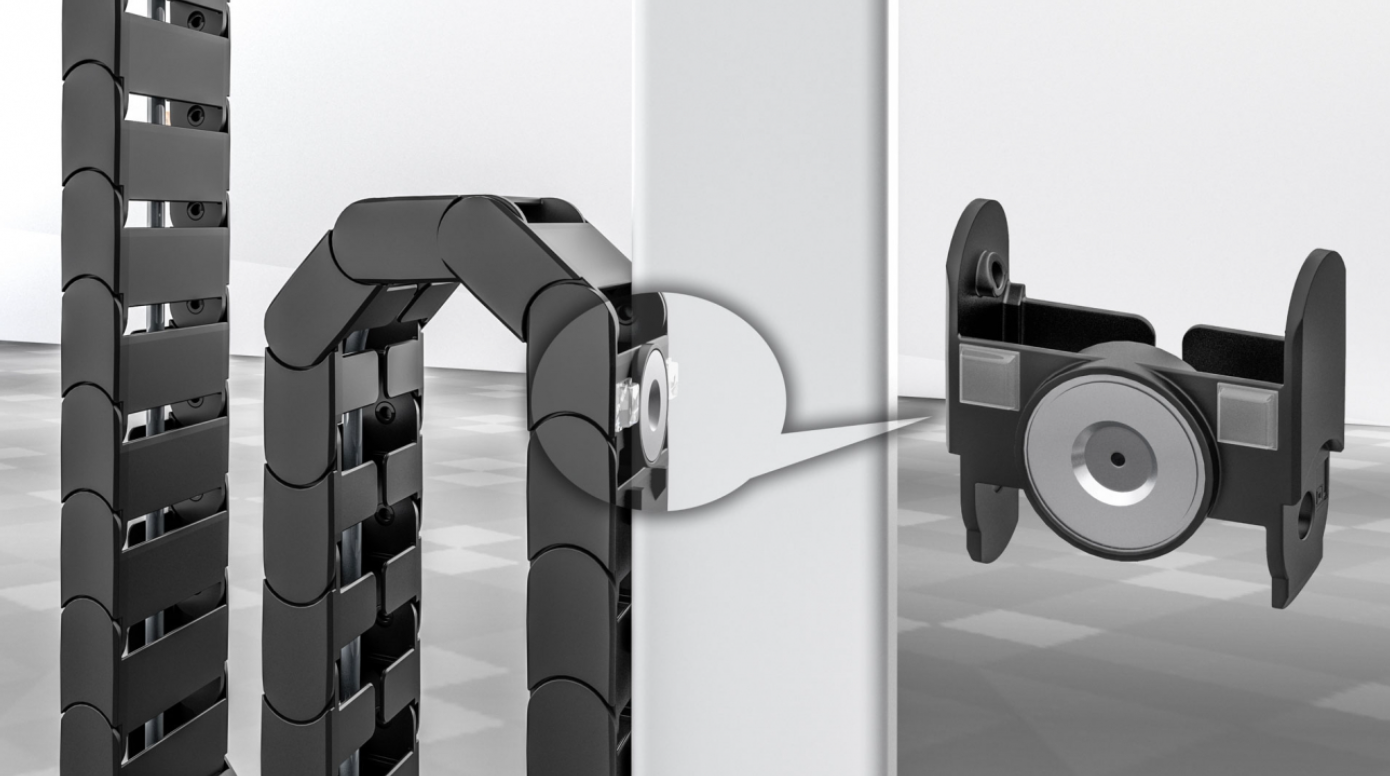

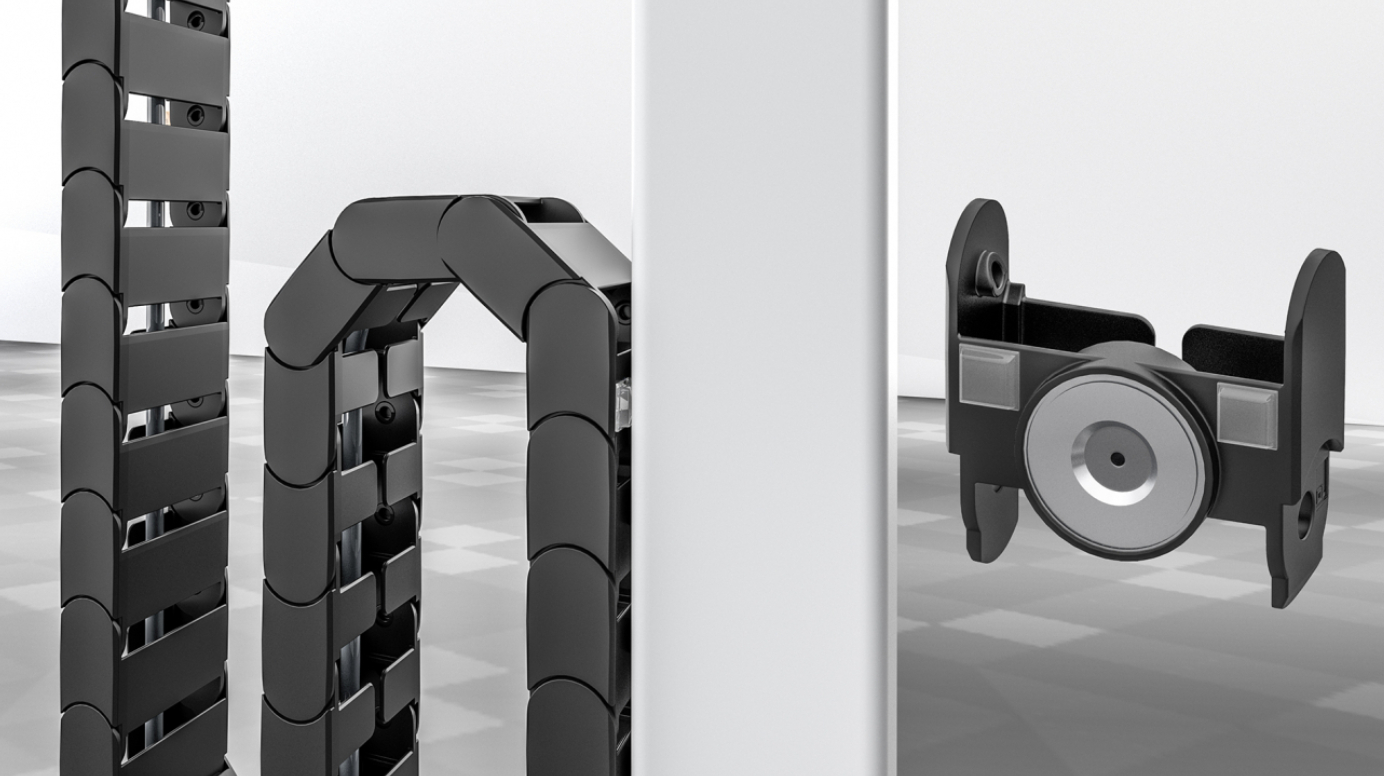

• Magnet holders
• Floor trunking
• Cable ports
• Under desk cable

For more information on how it works, why not watch our short video within the video tab above!

We show standard finishes where possible, but if you require a colour that is not listed then get in touch with our sales team today as custom parts may be available on request, subject to MOQ’s and extended lead times.
